Performance and Characteristics:
|
|
The machinge body is channel steel frame traction frequency friction,with single rolling friction,lift up and down which is suitable for blowing high-low pressure polyethylene industral fiml and agricultural film.
|
|
Main Technical Variables:
|
|
Model
|
SJ-A45
|
SJ-A50
|
SJ-A55
|
SJ-A65
|
|
Suitable Material
|
LDPE,HDPE,LLDPE
|
LDPE,HDPE,LLDPE
|
LDPE,HDPE,LLDPE
|
LDPE,HDPE,LLDPE
|
|
Screw Diameter
|
Ф45
|
Ф50
|
Ф55
|
Ф65
|
|
Film Width(mm)
|
100-500
|
300-600
|
400-800
|
600-1200
|
|
Film Thickness (mm)(HD)
|
0.009-0.05
|
0.009-0.05
|
0.009-0.15
|
0.009-0.15
|
|
Film Thickness (mm)(LD)
|
0.02-0.15
|
0.02-0.15
|
0.03-0.15
|
0.03-0.15
|
|
Max Extrusion Output(kg/h)(HD)
|
40
|
45
|
55
|
65
|
|
Max Extrusion Output(kg/h)(LD)
|
45\50
|
50
|
60
|
70
|
|
Screw L/D Length
|
28:1\30:1
|
28:1\30:1
|
28:1\30:1
|
28:1\30:1
|
|
Main Motor(kw)
|
7.5
|
11
|
15
|
22
|
|
Take-up Motor(kw)
|
0.75
|
1.1
|
1.1
|
1.5
|
|
Outline Dimension
(L×W×H)(m)
|
5.0×2.0×4.1
|
5.0×2.2×4.5
|
5.5×2.5×5.2
|
5.8×2.8×6.3
|
|
|
|
|
|
| Payment Terms︰ | TT / LC / DP / DA |
|
|

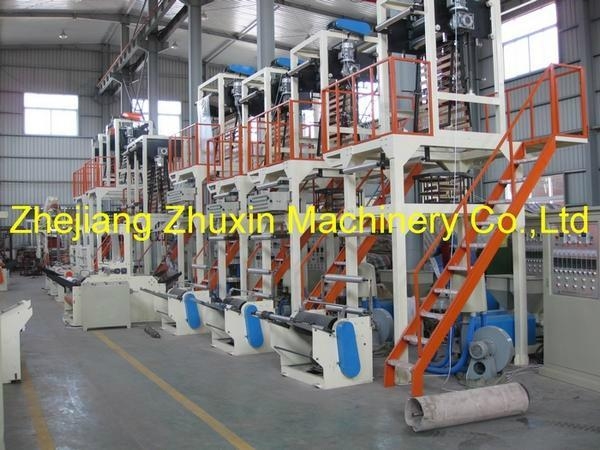

Product Image
|
